DATALOGGERS |
| |
|
|
| Uniscan-3200 (Universal) |
| No of Channels : |
Eight to Thirty Two channels |
| Type. of Inputs : |
RTD Pt100(3 wire), mA, Thermocouples (J, K, R, S, T, B &E) or Volt. Input type is field settable. |
| Features : |
LCD display, Settings through Keyboard, Data logging & Printer port, Serial port RS232/ RS485 with Modbus, Alarms output with indication |
| Application : |
Standalone recording / SCADA |
|
| |
|
|

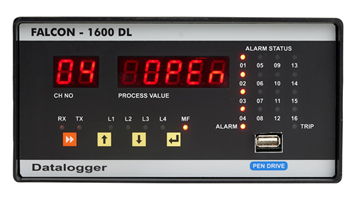

Falcon-1600 DL |
| No of Channels : |
Four to Sixteen channels. |
| Type. of Inputs : |
RTD Pt100 (3 wire), mA, Thermocouples (J, K, R, S, T, B &E) or Volt factory set. |
| Features : |
LED display, Settings through Keyboard, Data logging, Printer port, Serial port RS232/ RS485 with Modbus. |
| Application : |
Standalone recording / SCADA |
|
| |
|
|
| DLC - 001 M |
| No of Channels : |
One. |
| Type. of Inputs : |
4-20mA DC Linear. |
| Features : |
LED display, Settings through Keyboard, Data logging, Printer port, Serial port RS232/ RS485 with Modbus. |
| Application : |
Standalone recording. |
|
| |
|
|

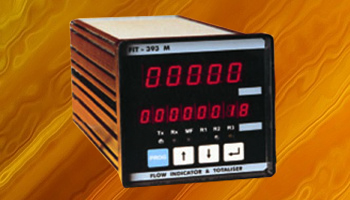

FIT logger |
| No of Channels : |
4 - 20mA linear |
| Features : |
Five digit flow rate, Eight digit totaliser, range scalable by front keypad, alarm/ batch control output relay, Serial port RS485 with Modbus, retransmission output, Data logging, printer port. |
| Application : |
Standalone Flow Logger Indicator Controller / SCADA. |
|
| |
|
| Falcon series Scanner and IO modules for SCADA Application |
| |
|
|

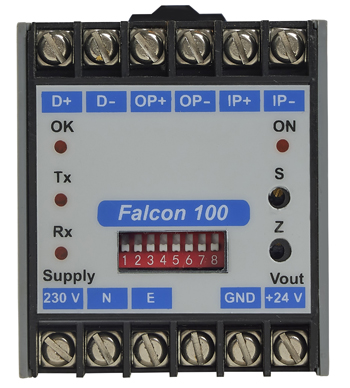

Falcon 100 |
| No of Channels : |
One. |
| Type. of Inputs : |
4 - 20mA |
| Features : |
Blind unit with Serial port
RS485/RS232 with Modbus. |
| Application : |
SCADA |
|
| |
|
|
Falcon 1600 |
| No of Channels : |
Four to Sixteen channels analog, Four to Sixteen digital Outputs |
| Type. of Inputs : |
Analog Inputs - RTD Pt100 (3 wire), mA, Thermocouples (J, K, R, S, T, B &E) or Volt, factory set. |
| Features : |
LED display, Settings through Keyboard, Serial port RS485 with Modbus |
| Digital Output : |
TTL outputs connected to external Relay card. These outputs are used for alarm or control of each channel. |
| Application : |
Temperature Scanner/ Process Scanner/ SCADA |
|
| |
|
|

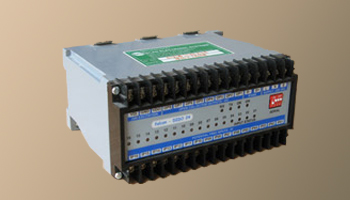

Falcon DIDO 24 |
| No of Channels : |
Sixteen Digital Inputs and Eight Digital Outputs
|
| Type. of Inputs : |
Potential free contact |
| Type. of Outputs : |
Open Collector outputs connected to external Relay card. |
| Features : |
Blind unit with Serial port RS485 with Modbus
|
| Application : |
SCADA, PLC, Production Counting, Machine Status. |
|
| |
|
|

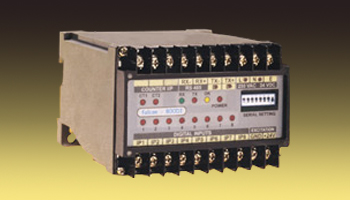

Falcon 800 DI/DO |
| No of Channels : |
Eight digital Inputs or Outputs factory set. |
| Type. of Inputs : |
Digital Inputs - Potential free. Digital Output - Open Collector outputs connected to external Relay card. |
| Features : |
Blind unit with Serial port RS485 with Modbus |
| Application : |
SCADA, PLC, Production Counting, Machine Status. |
|
| |
|
|

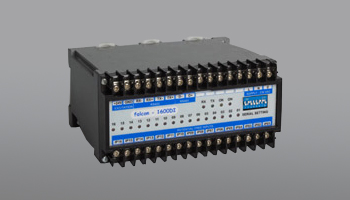

| Falcon-1600 DI |
| No of Channels : |
Sixteen digital Inputs |
| Type. of Inputs : |
Potential free. |
| Features : |
Blind unit with Serial port RS485 with Modbus |
| Application : |
SCADA, PLC, Production Counting, Machine Status. |
|
| |
|
| Flow Indicator and Totaliser |
| |
|
|

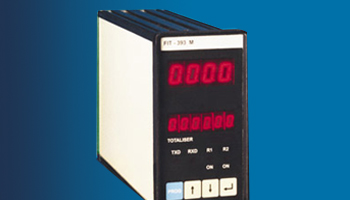

FIT393M (72*144) |
| No of Channels : |
4 - 20mA linear / sq. root
|
| Features : |
Four digit flow rate, 6 digit totaliser, range scalable by front keypad, alarm/ batch control output relay, Serial port RS485 with Modbus, retransmission output |
| Application : |
Standalone Flow Indicator Controller / SCADA |
|
| |
|
|

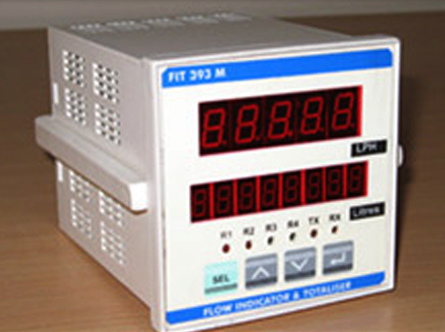

FIT393M (96*96) |
| No of Channels : |
4 - 20mA linear / sq. root or pulse, factory set.
|
| Features : |
Five digit flow rate, Eight digit totaliser, range scalable by front keypad, alarm/ batch control output relay, Serial port RS485 with Modbus, retransmission output, Data logging, printer port. |
| Application : |
Standalone Flow Logger Indicator Controller / SCADA |
|
| |
|
| Mass Flow Indicator |
|
| |
|
|

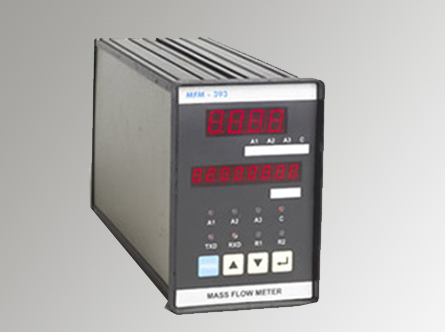

Mass Flow Indicator - MFM393M |
| Name of Inputs : |
Three. |
| Type of Inputs : |
|
| Features : |
Four digit flow rate, Eight digit totaliser, range scalable by front keypad, alarm/ batch control output relay, Serial port RS485 with Modbus. |
| Out put: |
4-20mA corresponding to Mass Flow |
| Calculation: |
Programmable Gain and Offset |
| Application : |
Standalone Mass Flow Indicator Controller / SCADA |
|
| |
|
|
Net Heat Meter- NHM393M |
| No of inputs : |
Three. |
| Type. of Inputs : |
4 - 20mA |
| Features : |
Four digit flow rate, Eight digit totaliser, range scalable by front keypad, Serial port RS485 with Modbus. |
| Application : |
Standalone Net Heat Indicator / SCADA, typically for Building Automation. |
|
| |
|
Smart Digital Process Indicator |
| |
|
|
DPC 412 |
| Inputs : |
4 - 20mA/ Volt |
| Features : |
4 ½ digit 1 inch height LED Display, range scalable by front keypad, alarm/ control output relay, multiple engg. Units, Serial port RS485 with Modbus |
| Application : |
Standalone Indicator Controller / SCADA |
|
| |
|
|
DPC 965 M |
| Inputs : |
4 - 20mA / Volt |
| Features : |
4½ digit, ½ inch height LED Display, range scalable by front keypad, alarm/ control output relay, Serial port RS485 with Modbus |
| Application : |
Standalone Indicator Controller / SCADA |
| Optional : |
4-20mA output programmable from PC. |
|
| |
|
Serial Converter and Repeaters |
| |
|
|
CSCAN 485 |
| Inputs : |
RS232 C on 9 pin D connector. |
| outputs : |
RS485 or RS422 |
| Features : |
Bi-directional flow, isolation between two ports, Auto baud selection. |
| Control Supply: |
230VAC / 110VAC ±10% |
|
| |
|
|
CSCAN485DC-2 |
| Inputs : |
RS232 C on 9 pin D connector. |
| outputs : |
RS485 or RS422. |
| Features : |
Bi-directional flow, isolation between two ports, Auto baud selection. |
| Control Supply: |
10 to 30VDC. |
|
| |
|
|
CSCAN RPT 485 |
| Inputs : |
RS 485 |
| outputs : |
RS485/ RS422 |
| Features : |
Bi-directional flow, isolation between two ports, Auto baud selection From 300 bps to 19.2 kbps |
| Control Supply: |
230VAC / 110VAC ±10% |
|
| |
|
|
CSCAN RPT 485 DC |
| Inputs : |
RS 485 |
| outputs : |
RS485 |
| Features : |
Bi-directional flow, isolation between two ports, Auto baud selection from 300 bps to 19.2/115 kbps |
| Control Supply: |
10 to 30VDC |
|
| |
|
|
Ethernet Converter |
| Inputs : |
RS232C / RS485. |
| outputs : |
Ethernet Base10. |
| Features : |
Bi-directional flow, isolation between RS485 & Ethernet ports, Auto baud selection. |
| Control Supply: |
230VAC / 110VAC ±10% |
|
| |
|
|
Protocol Converter |
| Specification: |
Interface between two different protocols. |
| |
Communication parameter settings for both Master and Slave. |
| |
LED indications for System OK and communication between Master and Slave. |
| |
Station Address setting facility. |
| |
RS232 Connectivity for Master and Slave. |
| |
Available in standard wall Mounting or IP65 Cabinet. |
|
| |
|
|
| |
|
|
Signal Isolator |
| Inputs : |
4-20mA or 0-20mA Frequency
AC/DC Voltage.
AC current through CT
|
| outputs : |
4-20mA or 0-20mA
1.5VDC / 0-10 V DC
Loop powered Isolator |
| No of Output Channel : |
1 to 4 |
| Isolation: |
0.3% of FS |
| Type: |
· 1 I/P , 1 O/P
· 1 I/P , 2 O/P
· 1 I/P , 3 O/P
· 1 I/P , 4 O/P
· Loop Powered
|
|
| |
|
Sensors and Transmitters |
| |
|
|
Sensors |
| a) Temperature sensor |
| 1) RTD:- |
4-20mA or 0-20mA Frequency
AC/DC Voltage.
AC current through CT
|
| Specification: |
|
| 1) Transition type, RTD PT-100, 3 wire,-50 to 400 deg C, ½” BSP nut, 6.35mm diameter |
| 2) Normal head mounting type, Simplex RTD PT-100, 3 wire, ½” BSP nut, 6.35mm diameter |
3) Flameproof head mounting type, Simplex RTD PT-100, 3 wire, ½” BSP nut, and 6.35 mm
diameter.
Note: Wire Length depends on requirement. |
| Isolation: |
0.3% of FS |
| Type: |
· 1 I/P , 1 O/P
· 1 I/P , 2 O/P
· 1 I/P , 3 O/P
· 1 I/P , 4 O/P
· Loop Powered
|
| |
|
2) Thermocouple |
1) T type thermocouple |
2) K type thermocouple |
|
| |
|
| Temperature Humidity Sensors |
|
| |
|
|
Temperature Humidity Sensor |
| |
|
| 1) |
Hygroclip model:
Supply – 24VDC.
Operating range:0-100% Rh and -40°C to 85°C.
Accuracy : ± 1.5%rh, ± 0.5°K.
Output: 0-1VDC . |
| 2) |
Roline model:Supply – 24VDC.
Operating range: 0-100% Rh and 0°C to 50°C.
Accuracy : ± 3%rh, ± 0.5°K.
Output: 4-20mADC. |
|
| |
|
| Pressure Sensor and Pressure Transmitter |
|
| |
|
|
Pressure Sensor and Pressure Transmitter |
| |
|
Supply : |
24 VDC |
Signal Output : |
4-20m ADC 2- Wire |
Connections : |
1/4'' BSP (M) / 1/2'' BSP (M) |
Accuracy : |
1% of FS / 0.5% of FS |
Range : |
0 to 10 Bar |
Material : |
Stainless Steel |
|
| |
|
Recording software- SCADA |
| |
|
|
Intellutions SCADA |
| |
Supervisory Control |
Reporting |
Alarm Management |
Connectivity to Third Party Applications |
| Web Connectivity |
Range of Hardware Drivers |
21CFR version optional |
|
| |
|
|
Falcon - Smart Process Recorder |
|
Recording Software with standard facilities like Tabular Reports, Online graphs, History graphs, Alarms, Mimics. |
Batch Recording optionally available. |
Auto Email reports |
Multiple level passwords.21CFR version with Audit Trail
validation available |
|
| |
|
| Sterilizer Validation System |
|
| |
|
|
Sterilizer Validation System |
Features: |
|
• 16 to 32 Channel Systems. |
• Accepts Analog input mA / RTD / Volt / Thermocouple. |
• Automatic report generation of Data Table, Lethality Table, Average Table, Holdtime Report, Temp. Graph,
Fh Graph and Validation Certificate. |
• Audit Trail report as per desired period. |
• Data stored in compressed encoded format. |
• Online data acquisition and recording. |
• Data and reports directly provided on PC. |
• Designed for 21CFR Part11 Compliance. |
|
| |
|
| |
|
